How the new ultrasonic self-piercing riveting process is shaking up car-body automotive manufacturing

Bosch inventor Florian Woelke has developed a technique that paves the way for completely new combinations of materials. His invention could mark a revolution in lightweight automotive chassis-building.

Florian Woelke and his team’s invention marks a revolution in lightweight automotive chassis-building. These Bosch innovators have developed a technique that paves the way for completely new combinations of materials for car bodies.

Lightweight construction to drive innovation

Ultrasonic self-piercing riveting process makes vehicles leaner: less weight and less CO₂ consumption.

In automotive manufacturing, every kilogram matters — the lighter the car, the lower its fuel consumption. And that’s good news not only for the owner’s wallet, but also for the environment and automakers’ carbon footprint, since lower fuel consumption means lower carbon dioxide emissions. EU legislators have recently tightened up CO₂ limits for new passenger cars and commercial vehicles. If these far more rigorous requirements are to be met, it’s high time for cars to go on a diet. Electric vehicles, where lighter weight means longer range, could also do with a slimming regime. And that’s reason enough for manufacturers of the automotive industry to turn to different and ever more sophisticated combinations of materials in order to get their vehicles to shed a few more kilos.

“Innovative joining technology is the key to creating new concepts for materials in car body engineering. Ultrasonic self-piercing riveting pushes the limits of innovation, paving the way for new classes of materials.”
Florian Woelke, project manager in corporate research and advance engineering at Bosch

Ultrasonic sleight of hand

Joining materials suitable for lightweight construction is a tricky task. For example, magnesium can rupture or break if it is formed at room temperature. How can lightweight materials as sensitive as this still be used in mass manufacturing?
The Bosch inventor Florian Woelke came up with the brilliant idea of using sound waves. These waves excite the head of the rivet, so that it vibrates before joining any two or more materials. Instead of applying ever more pressure, the rivet is coaxed through the material. As a result, ultrasonic self-piercing riveting can now join materials that were previously difficult to bring together, such as carbon and steel, or aluminium and magnesium.

Florian Woelke and his colleague look at the prototype of ultrasonic self-piercing riveting.

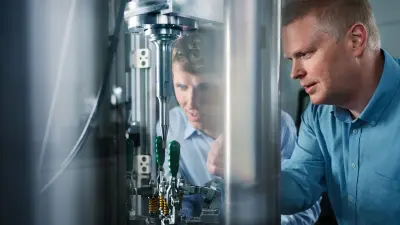

Florian Woelke (left) and his team spent many hours in the lab optimizing their prototype ultrasonic self-piercing riveting process.

A program of detailed experiments and simulations to find the best possible joint

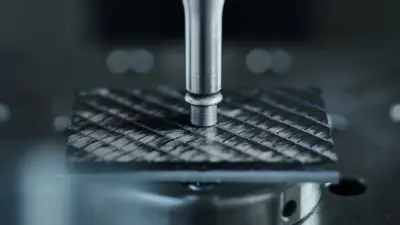

Ultrasonic self-piercing riveting joins carbon and steel.
This process has since been refined to perfection: ultrasonic self-piercing riveting joins carbon and steel without damaging the materials.

Woelke’s lab on the Bosch campus in Renningen, Germany, is chockablock with boxes of square plates, each with one riveting point. Using a prototype, he and his team performed a series of experiments, manually joining roughly 20 different materials. Together with results of simulations, this helped them find the ideal ultrasonic parameters.
“We achieve the best results when the rivet elements are pressed in at vibrations of 20 kilohertz,” Woelke says. At this frequency, which is inaudible for humans, the punch oscillates at an amplitude of 0.1 millimeters.

How the new joining technique works

How the new joining technique for automotive lightweighting works

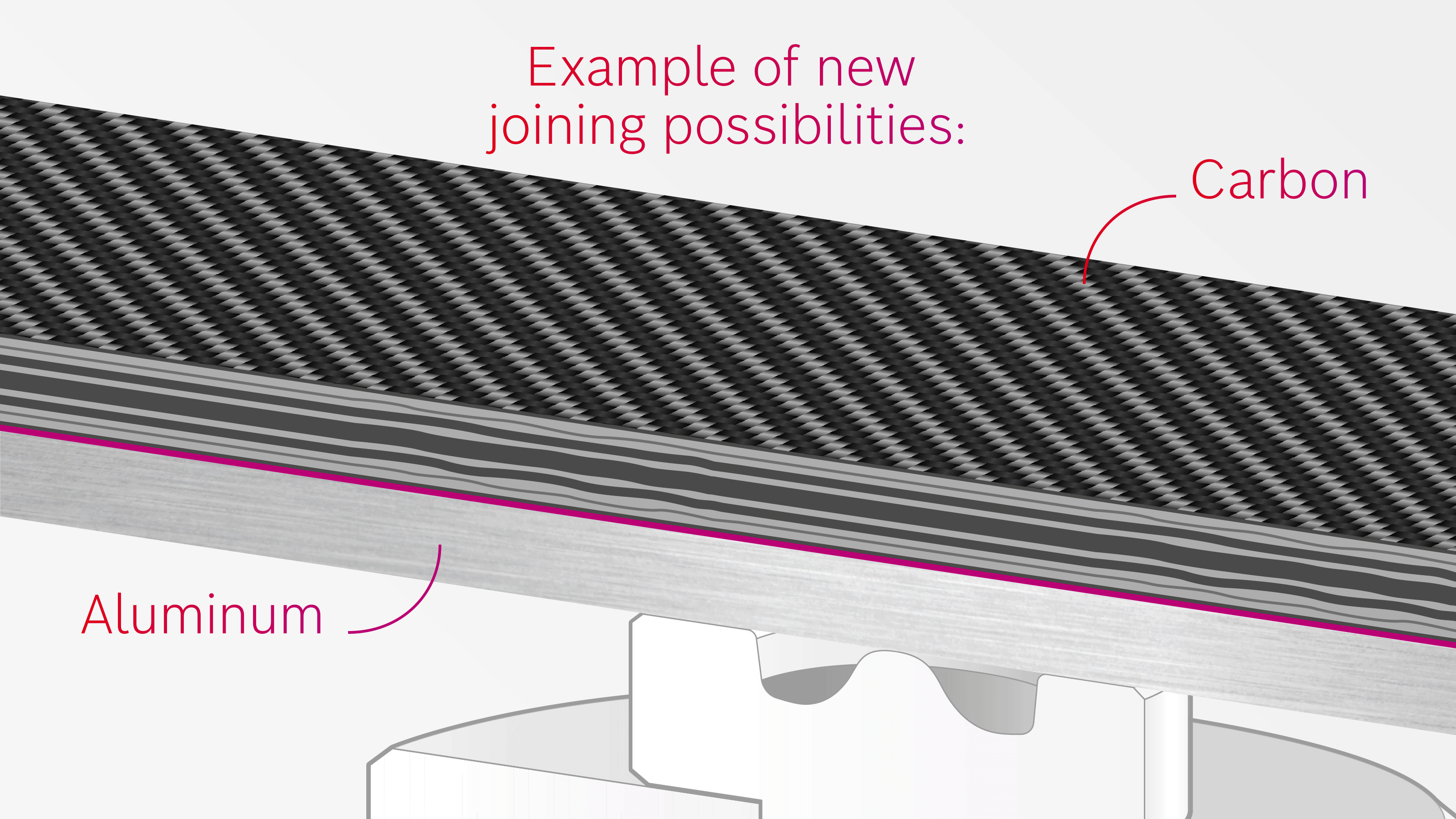

An exploded slow-motion view of the ultrasonic self-piercing riveting process shows the rivet moving forward in a rhythmic pattern of movement, much like reptilian locomotion in the animal kingdom.

Higher quality, lower costs

Ultrasonic self-piercing riveting is a material-friendly and universally applicable joining technique. “Our process can replace other joining techniques in car body production,” Florian Woelke says. There can be 3,000 or more riveting points on a vehicle’s chassis. Clearly, therefore, a standard solution could offer tremendous advantages. This is an invention with vast potential — especially in the field of lightweight automotive engineering. Pointing out further benefits, Woelke adds, “The quality of the joint is better than with conventional methods, and new process signals mean inspection effort is reduced.”

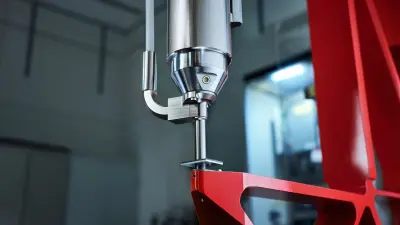

The device for trasonic self-piercing.
In an extensive series of experiments, the ultrasonic process was tried out on a prototype.
“The excellent conditions at Bosch allow me to put my knowledge and creativity into practice.”
Florian Woelke, project manager in corporate research and advance engineering at Bosch

From idea to research project

Bosch offers young inventors excellent working conditions.
Developing new products is a calling for Florian Woelke. Bosch offers young inventors excellent working conditions.

The idea of working with ultrasound came to Florian Woelke during a business trip. A colleague told him about the impact this technology had had in a different type of process. This prompted the 35-year-old project manager to see if it would work with the rivets used in the joining process.
From there, everything happened quickly. Bosch endorsed a preliminary study. Its positive results prompted a concept study. Two years of experiments later, it moved up to become a research project. Woelke filed the basic patent application in 2014. Starting in April 2016, other associates were brought on board and integrated into the team.

Rollout of the innovative joining technique

The Bosch development team talks about the work.
Thanks to excellent work by the development team, ultrasonic self-piercing riveting will soon debut in manufacturing applications.

The process, which is particularly suitable for lightweight materials, has been arousing curiosity in the automotive industry for some time now, with several automotive manufacturers showing interest in using this dynamic joining technology for chassis building. It is now up to Bosch Rexroth to get the technology ready for the market. Rexroth plans to roll out the first test devices to the industry in 2020. Bosch has turned a lightbulb moment on a business trip into an innovation ready for the mass market.


Florian Woelke is looking at his mobile standing on the stairs.

Florian Woelke

Project manager in corporate research at Robert Bosch GmbH, Renningen

Born 1984 in Dresden, Germany. Majored in mechanical engineering at Dresden’s technical university; specialized in production engineering. Joined Bosch in 2012, initially as a research engineer in Schwieberdingen. Project manager for the ultrasonic self-piercing riveting process in Renningen since 2014. Bosch Inventor Award 2018, Bosch Rexroth Innovation Award 2017, over 100 patents and disclosure documents. Personal interests: skiing, basketball, automotive technology.
